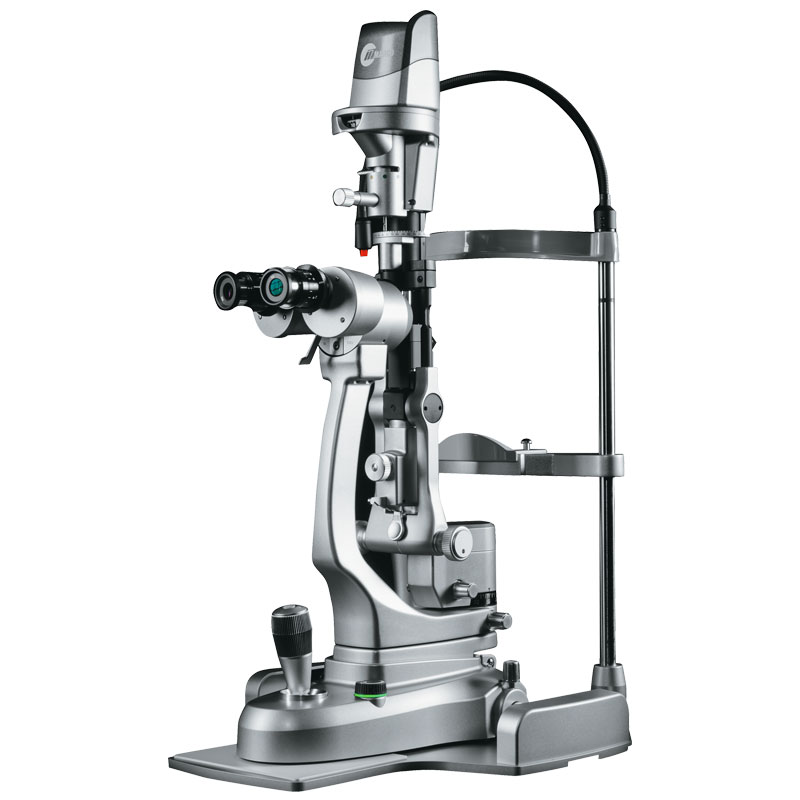

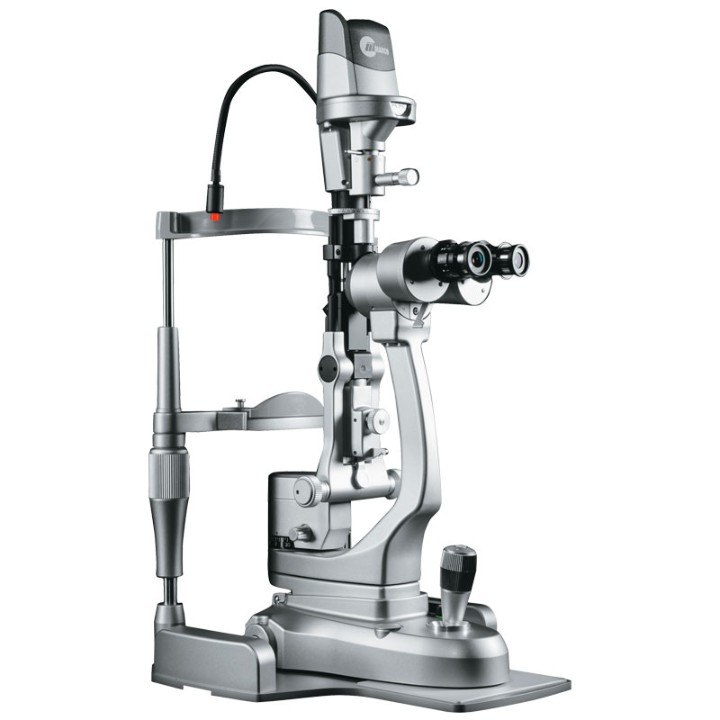

Our Ultra M3 slit lamp uses convergent (greenough) type binocular stereomicroscope and tower with tilt for light source configuration. The M3 conventional slit lamp also features 2 power magnifications (10x, 16x), blue, red-free, blue LED correction light filters, 2-position switch revolving objective magnification change, and 10x eye pieces.

Cable Free DesignThe Ultra M Slit Lamps are neat and compact with no exposed wiring, giving them a noticeably sleek and stylish appearance. Contemporary and durable finishes have been selected both for lasting application and patient appeal. |
![]() |
| Type Binocular Stereomicroscope | Convergent (Greenough) |
|---|---|
| Light Source | LED |
| Light Source Configuration | Tower with Tilt |
| Background Illumination | Not standard (option only) |
| Light Filters | Blue, Red-free, Blue LED Correction, Yellow |
| Slit Width | 0-14mm continuous variable |
| Aperture Diaphragm Diameter | (Ø) 14, 10, 5, 3, 2, 1, 0.2mm |
| Total # Power Magnifications | 2 (10x, 16x), (3 (25x with 16x eyepieces)) |
| Magnification Change | 2-position switch revolving objective |
| Eye Pieces | 10x, (16x optional) |
| Real Field of View | (Ø) 18, 11.25 (with 10x eyepieces) 15, 9.3mm (with 16x eyepieces) |
| Interpupillary Adjustment | 52-82mm |
| Diopter Adjustment Range | (+/-) 8 diopters w 10x eyepieces (+/-) 10 diopters w 16x eyepieces |
| Horizontal Coarse Movement | 105mm |
| Horizontal Fine Movement | 15mm |
| Vertical Movement | 30mm |
| Fixation Light Source | Red LED on Flexible Arm |
| Large Patient Chin Rest | Not standard (option only) |
| Chinrest Elevation | 95mm |
| Power Supply | AC100V-240V (+/-10%) |
|---|---|
| Power Consumption | DC5V 2A |
| Mass | 12.5kg |
|---|
